Precision matters in the coil winding industry. Whether for electronics, medical devices, or automotive applications, fine wire coil winding demands accuracy, consistency, and a deep understanding of both material and machinery. As wires become thinner and tolerances tighter, the margin for error shrinks considerably. A single overlooked detail in the production process can mean wasted material, rework, or even critical product failure in the field.
At Itasca Automation Systems, we’ve spent decades designing automated solutions that eliminate inefficiencies and mitigate production risks for manufacturers worldwide.

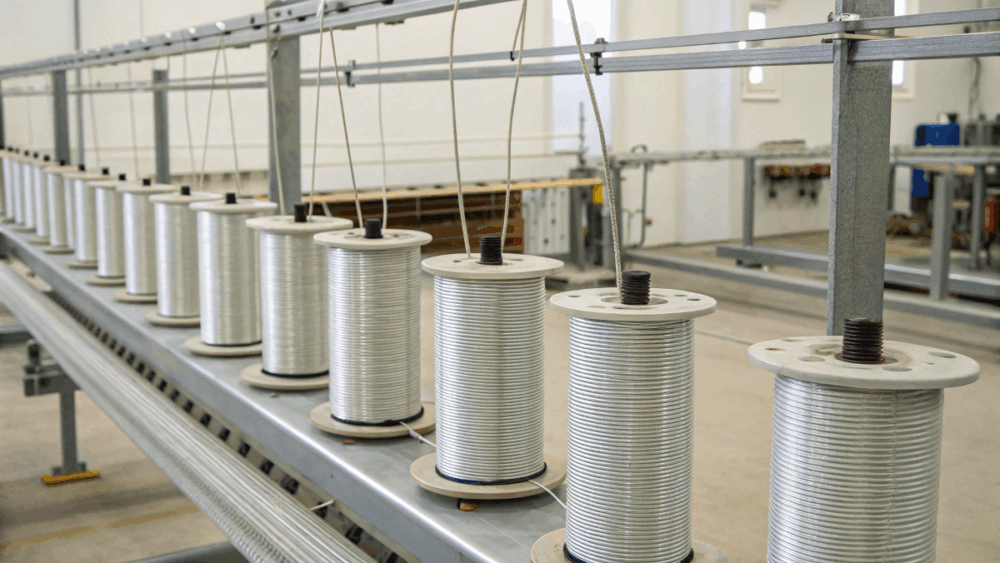

1. Inconsistent Wire Tension
The Problem
Wire tension is one of the most critical factors in fine wire coil winding. Too much tension risks snapping fragile wires, while too little tension leads to loose, uneven coils that compromise electrical performance. Even small fluctuations can result in product defects or field failures.
Inconsistent tension often arises from:
- Operator variability in manual processes
- Poorly calibrated tensioning devices
- Environmental factors like humidity and temperature changes
- Mechanical wear in winding equipment
The Fix
Modern automated winding systems solve this issue with closed-loop tension control. Using sensors and servo-driven mechanisms, these systems monitor and adjust wire tension in real time, ensuring that every coil is wound with consistent precision.
At Itasca Automation Systems, our machines incorporate advanced feedback systems that continuously regulate wire feed. This eliminates operator guesswork, reduces breakage, and improves yield rates significantly.
2. Wire Breakage During Production
The Problem
Wire breakage is more than just a nuisance—it can halt production, damage workpieces, and create downstream quality issues. With fine wires measured in microns, the risk of breakage is heightened during rapid winding, threading through guides, or transitions between layers.
Frequent wire breaks often stem from:
- Excessive tension or tension spikes
- Poorly aligned guides and pulleys
- Inadequate lubrication or coating issues
- Sharp edges or burrs on mechanical components
The Fix
The solution lies in precision machine design. Every component that touches the wire must be engineered for smooth, damage-free handling. Rounded surfaces, low-friction coatings, and optimized threading paths are key.
Our engineers design winding heads and guiding systems with lean, modular principles, allowing customization to specific wire gauges and insulation types. We also integrate automatic wire threading and break-detection sensors, which not only reduce downtime but also protect delicate wires from over-stress.
3. Layer Misalignment and Pattern Defects
The Problem
Coils must meet strict dimensional and electrical specifications. Misalignment between layers leads to irregular shapes, variable inductance, and wasted material. In some industries—like medical implants or aerospace—layer accuracy is non-negotiable.
Common causes include:
- Variations in traverse speed relative to spindle rotation
- Mechanical backlash or vibration
- Software errors in programming winding patterns
- Inconsistent starting points for each winding cycle
The Fix
Automated winders with multi-axis servo control deliver unparalleled repeatability. By synchronizing spindle speed and wire guide movement with micron-level accuracy, they ensure that each layer of wire follows a precise path.
At Itasca Automation Systems, we leverage modern 3D CAD tools during the design phase to simulate winding patterns and optimize machine geometry before production. Our concurrent design approach ensures software, hardware, and operator interfaces work together seamlessly, minimizing the chance of pattern defects.
4. Inefficient Changeovers and Setup Times
The Problem
Manufacturers often need to produce multiple coil designs on the same production line. Long setup times between runs reduce throughput and increase costs. In traditional winding processes, changeovers may require:
- Replacing tooling and fixtures
- Manually rethreading wires
- Reprogramming machine controls
- Trial-and-error adjustments before production stabilizes
This creates bottlenecks and limits flexibility, particularly in industries where custom or small-batch production is common.
The Fix
The key is modular machine design. By creating interchangeable tooling and fixtures, manufacturers can drastically reduce changeover time. In addition, user-friendly software interfaces with recipe-driven controls allow operators to switch between coil designs with minimal training.
Itasca Automation Systems specializes in lean, modular automation platforms. Our solutions support quick reconfiguration for different coil geometries, wire gauges, or finishing processes. This not only boosts productivity but also maximizes return on investment by allowing a single machine to handle a wide range of applications.
5. Bottlenecks in Finishing Processes
The Problem
Winding is only part of the equation. A coil isn’t complete until terminals are inserted, leads are soldered, insulation is taped, and the part passes electrical testing. In many factories, these finishing steps remain partially manual, introducing variability and slowing down throughput.
Bottlenecks often arise from:
- Manual soldering or taping operations
- Separate stations for testing and inspection
- Non-integrated workflows requiring multiple handling steps
The Fix
The solution is end-to-end automation. By integrating finishing processes into the winding machine itself, manufacturers reduce handling, improve repeatability, and streamline production.
Itasca Automation Systems offers machines that combine winding with terminal insertion, soldering, taping, and in-line testing. These multi-function systems not only cut cycle times but also enhance quality assurance by catching defects before they leave the production line.
The Role of Environment in Coil Winding Quality
While the five pitfalls above represent the most common challenges, it’s worth noting that environmental conditions—like vibration, temperature, and cleanliness—also play an essential role in fine wire coil winding. Uncontrolled humidity can affect wire insulation; airborne dust can contaminate sensitive parts.
By designing machines for stable operation in varied environments, Itasca Automation Systems ensures that performance remains consistent no matter the facility location. This reliability is critical for manufacturers operating in diverse climates or sectors requiring ultra-high quality standards.
Why Partner with Itasca Automation Systems?
Choosing the right automation partner can mean the difference between a process that struggles with constant troubleshooting and one that runs efficiently, day after day.
Here’s what sets us apart:
- Experience in Precision Automation: We specialize in coil winding machinery designed for the most demanding applications.
- Collaborative Design Approach: Using modern 3D CAD tools, we work hand-in-hand with clients to develop solutions tailored to their exact needs.
- Lean, Modular Systems: Our designs minimize waste, reduce changeover times, and adapt easily to new product requirements.
- Comprehensive Process Integration: From winding to soldering and testing, we deliver turnkey solutions that streamline the entire production line.
- Proudly Made in Wisconsin: Located on the scenic Door County Peninsula—a region known for shipbuilding and cherry growing—we bring the same craftsmanship and innovation to the coil winding industry.
Fine wire coil winding is a sophisticated process with little room for error. From tension control to finishing operations, each stage presents potential pitfalls that can undermine quality and efficiency. The good news is that with the right automation partner, these challenges are not only solvable but can be transformed into opportunities for competitive advantage.
Contact Us Today
At Itasca Automation Systems, we understand the complexities of fine wire coil winding—and we know how to solve them. Our mission is to deliver innovative, collaborative, and cost-effective solutions that exceed our customers’ expectations while supporting growth for our company, employees, and community.
If your production line is struggling with wire breakage, misalignment, or finishing bottlenecks, we’re ready to help. Contact us today to learn how our precision-engineered automation systems can transform your coil winding operations.
